Today I am going to tell you about what is rivet and types of rivets. We know that in a machine or in a structure, many small components are jointed together by some of mean. The design of joints is as well as important like machine because any loose joint may cause of failure during operation. In the mechanical, there are two types of joints, first one is permanent joint i.e. welding, rivets. And the other one is non-permanent i.e. bolt.
A rivet is a permanent mechanical joint which are broadly used to joint structure, ships, barrels etc. These joints are widely used in ship and boiler industries to join the structure member.



A rivet is a mechanical joint which is cylindrical in shape and having a head. It is used to joint structure member. It is a permanent joint which mean that it cannot be disassembled without failure of machine component. This joint form interference fit to joining the parts. Rivets apply mechanical force on the two plates which joint the plates permanently.
What is rivet? What are main types of rivets?



The process by which two plates are joints together by use of rivet is called riveting. In this process mechanical force is applied to make the joint strong and leak proof. In this operation two holes are created in both plates and the rivet is inserted between these holes. At the other end a force is applied through a die which deform the tail plastically and form a required shapes which hold the rivet in the hole and apply a mechanical pressure force which joint the structure. This process is shown by figure.
What is rivet? What are main types of rivets?

Types of Rivets:

Rivets are used as permanent fastener in mechanical industries. It is less costly and effective way of joining a structure. According to the requirement, rivets are available in many shapes and sizes.  According to the design of rivets, these are classified as follow.

Solid rivets:

Solid rivets used in many structure members such as in ships, Bridge etc. but now days these rivets are almost replaced by welding and brazing. According to head design these are as follow:

Round Head Rivet:

What is rivet? What are main types of rivets?

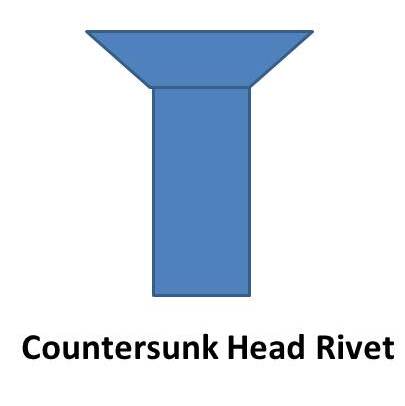

Countersunk Head Rivet:

What is rivet? What are main types of rivets?

Oval Countersunk Head rivet:

What is rivet? What are main types of rivets?

Blind Rivets:

Blind rivets are also known as hollow rivets. These rivets are used widely in aircraft industries, shipping industries and in many electronics industries. The main advantage of these rivets that they have the fastest rate of installation among all fasteners. One more benefit is that this can be install from the single side. A blind rivet is used when it is impossible to seen rivet tail.
What is rivet? What are main types of rivets?
For better understanding, watch the video.



Riveted Joints:

There are two types of rivet joints.

1. Lap joint

When the plates to be joint, are bring together which overlap each other at face, and rivet inserted in overlap section as shown in figure, the joint is known as lap joint.
What is rivet? What are main types of rivets?
According to the number of rows of rivets and its arrangement, this joint is further classified as follow

Single riveted lap joint:

In this joint, the rivets are inserted in the single line, that’s why it is called as single riveted lap joint.
What is rivet? What are main types of rivets?

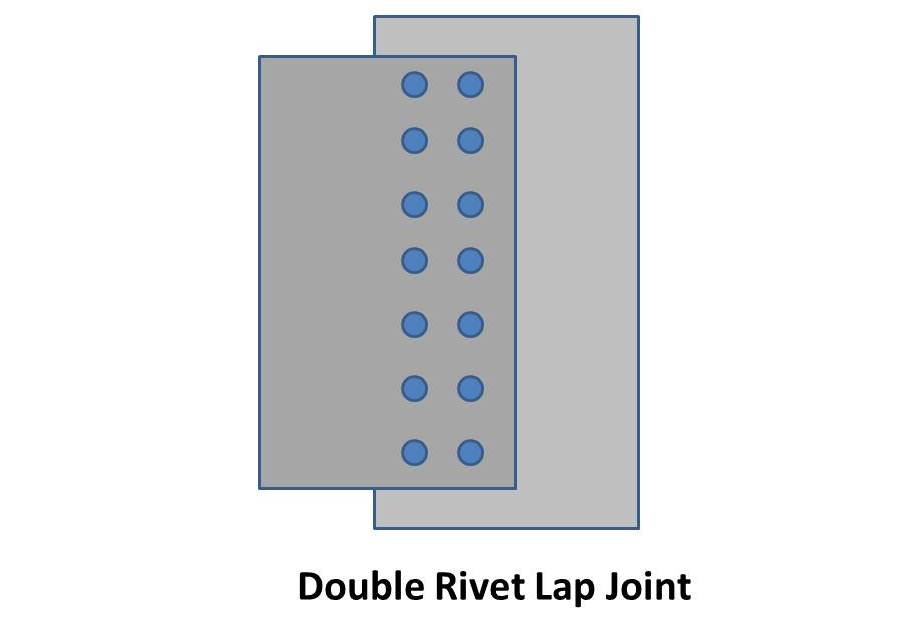

Double riveted lap joint:

In this joint, the rivets are inserted in the double line, that’s why it is called as double riveted lap joint.
What is rivet? What are main types of rivets?

Chain riveted lap joint:

What is rivet? What are main types of rivets?

Zig-Zag riveted lap joint:

What is rivet? What are main types of rivets?

2. Butt joint:

In this type of rivet joint both plates are bring together without overlap each other and joint are made by use of one or two cover plate as shown in figure.
What is rivet? What are main types of rivets?
According to cover plates, number of rows of rivets and arrangement, this joint is classified as follow.

Single straps butt joint:

In this joints, there is only one cover plate used so it is known as single strap butt joint.
What is rivet? What are main types of rivets?

Double straps butt joint:

In this joint cover plates are used both side of the work piece, so it is known as double straps butt joint.
What is rivet? What are main types of rivets?

Single riveted butt joint:

What is rivet? What are main types of rivets?

Double riveted butt joint:

What is rivet? What are main types of rivets?

Chain riveted butt joint:

What is rivet? What are main types of rivets?

Zigzag riveted butt joint:

What is rivet? What are main types of rivets?
Today we have learnt about what is rivets and types of rivets. We have also learnt about types of rivet joints. If you have any query you can ask by commenting. Subscribe our website for more informative articles. Thanks for reading it.
